Coritec One +

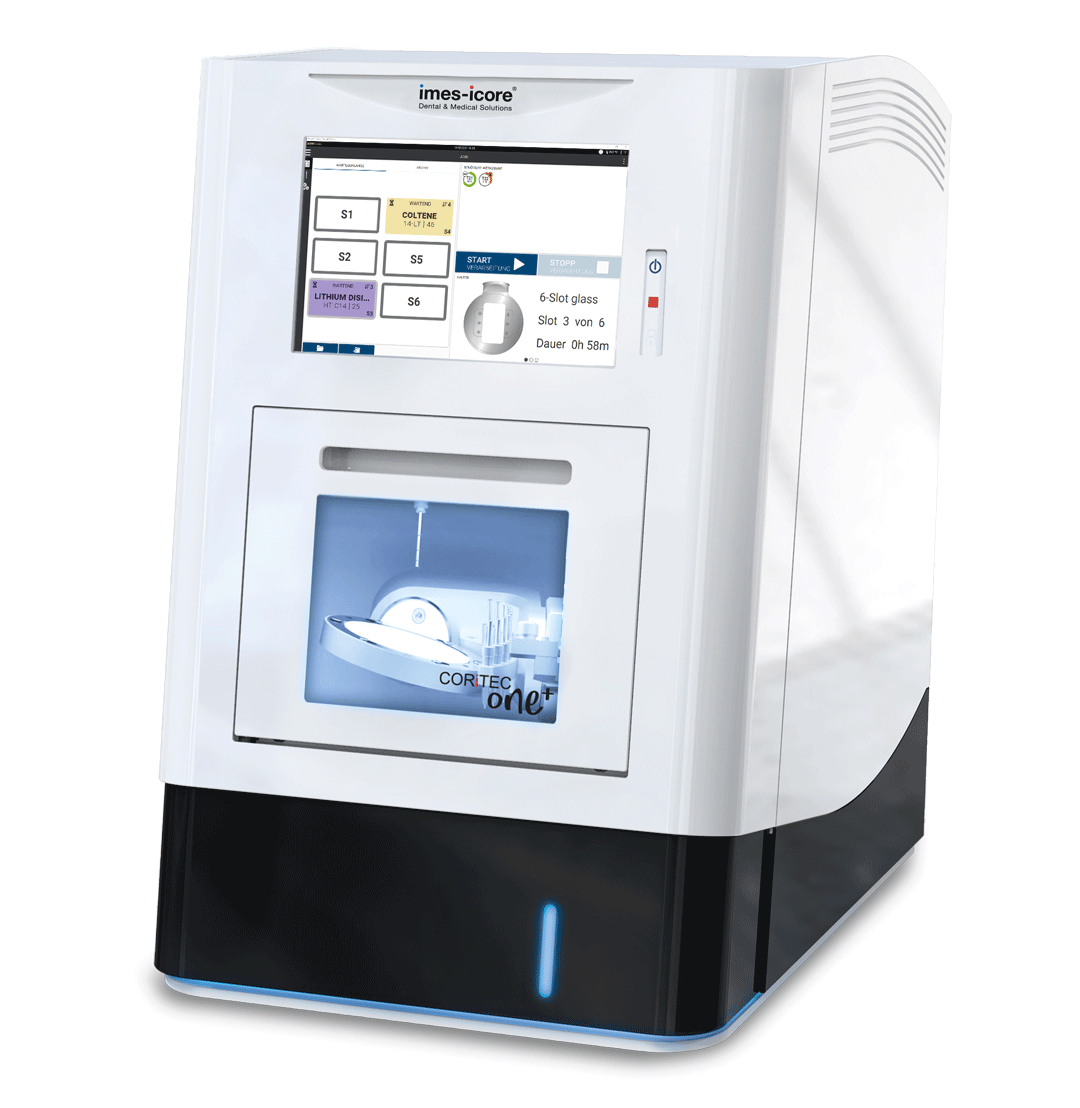

Imes-Icore CORiTEC One+: Advanced 5-Axis Chairside Milling System Milling Without Limits: Maximum Versatility & 5-Axis Precision The CORiTEC One+ by Imes-Icore is the high-end flagship solution in the chairside CAD/CAM area. Building upon the compact design of the original, the CORiTEC One+ introduces 5-axis simultaneous kinematics and an unmatched holder variety to handle both block and 98mm disc blank formats. Engineered with a closed mono-block cast aluminum body, high-frequency 100,000 RPM spindle, and integrated temperature compensation, it delivers ultimate flexibility for single-visit restorations and complex implant prosthetics with zero compromise on accuracy.
Key Features & Innovations
- 5-Axis Simultaneous Technology: Enables complex geometries, severe undercuts, and up to a 90-degree axis angle for maximum restorative freedom.

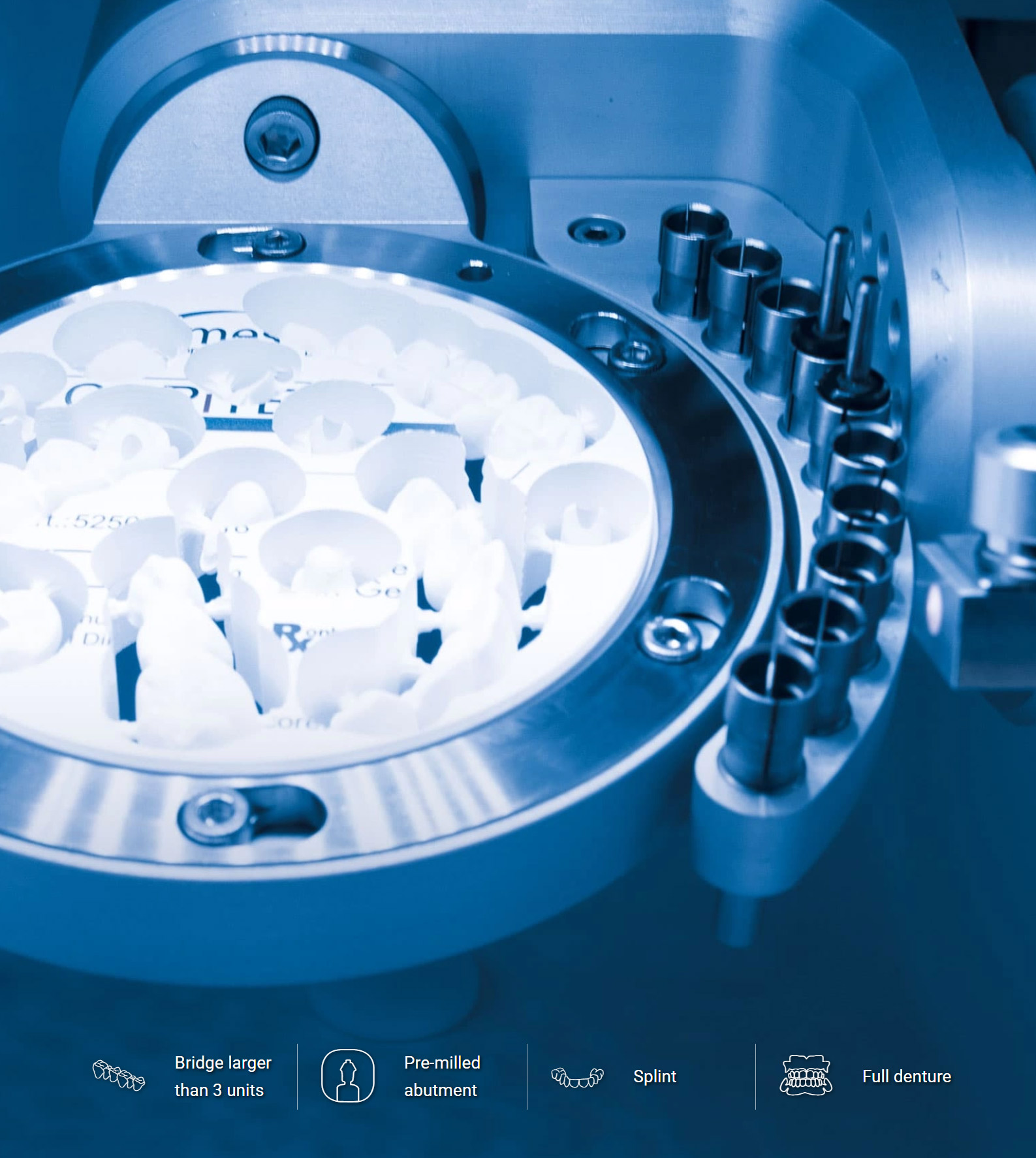

- Unmatched Holder System Versatility: Includes a quick-clamping mechanism supporting 5 holder options:
- Standard 98mm disc blank holder
- Open C-Clamp 98mm blank holder (for anterior processing)
- Single holder for blocks and premilled abutments
- 6-fold block holder
- 6-fold premilled abutment holder
- High-Performance Spindle (100,000 RPM / 860 W): Heavy-duty power for effortless wet and dry milling/grinding across all dental materials.
- Expanded Automated Capacity: Features an integrated 10-fold tool changer, automatic tool length measurement, auto-calibration, and automatic chamber cleaning.
- Self-Contained & Independent: Integrated closed-loop liquid cooling and built-in control system operating without external compressed air lines.

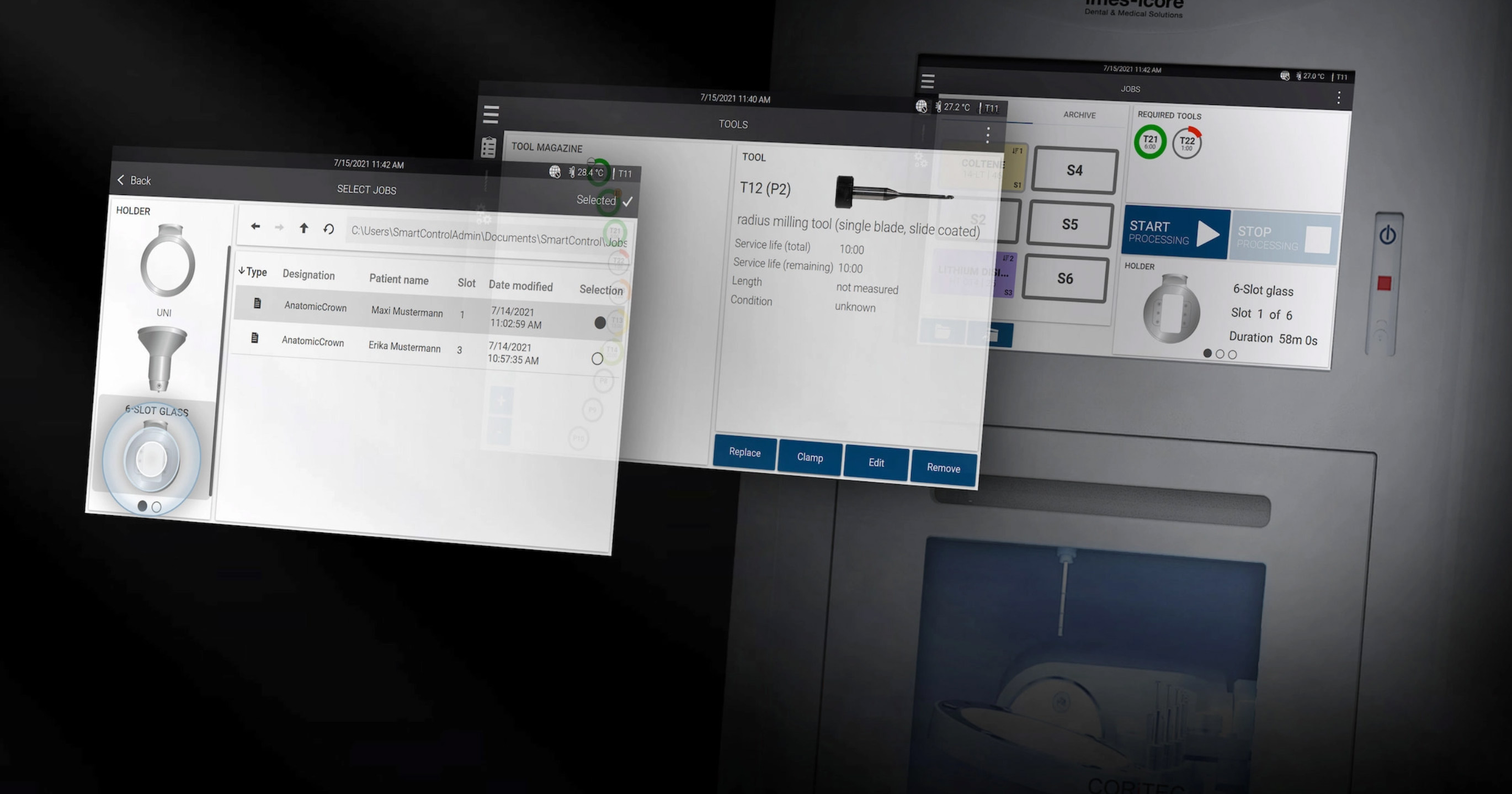

- Integrated PC & 10.1" Touchscreen: Features the intuitive CORiTEC SmartControl™ interface designed specifically for chairside workflows.
Extensive Material & Indication Range
The CORiTEC One+ supports wet and dry processing across blocks, 98mm blanks/discs, and premilled abutments:
- Glass Ceramics & Lithium Silicate (Wet grinding)
- Dense & Pre-sintered Zirconia (Dry & wet milling)
- Titanium & CoCr Prefabricated Abutments
- PMMA, Composites & Hybrid Ceramics
- Full-arch 98mm Disc Blanks (via standard or C-Clamp holders)
Key Benefits for Dental Practices & Labs
- Limitless Indication Capabilities: Produce everything from single-unit crowns, veneers, and inlays to titanium custom abutments and full-arch temp bridges.
- Flexible Material Processing: Switch effortlessly between block materials and 98mm discs according to clinical needs.
- Open System Architecture: Seamlessly connects with exocad Chairside CAD, all open intraoral scanners, and third-party software.
Experience chairside milling without limits. Deliver high-precision, 5-axis single-visit restorations with the Imes-Icore CORiTEC One+.
